Chain Link Mine Support Mesh is a Ecological Protection product supplied in configurations including Mine chain-link mesh, Galvanized chain-link mesh, High-strength chain-link mesh. Diamond-woven mesh with flexibility and load capacity for coal-mine roadway support and mining-area protection. Selection should confirm Mesh opening: 25–100 mm, Wire diameter: 1.5–5.0 mm, Knuckled, twisted or folded edge finishes are available together with the installation position and required performance. Available materials include Galvanized steel wire, High-tensile steel wire, Low-carbon steel wire. For Coal-mine roadway support, Mining-area protection, Tunnel reinforcement, state whether the product will face moisture, corrosion, outdoor exposure or impact so that aperture, wire diameter, thickness and finish can be matched correctly. For quotation, provide the application, specification, finished dimensions, quantity, lead time and destination. Drawings, samples or site photographs help confirm production, packing and delivery requirements before the order is released.

Endgültige Spezifikationen, Materialien und Lieferbedingungen richten sich nach freigegebener Zeichnung, Muster oder Angebot.

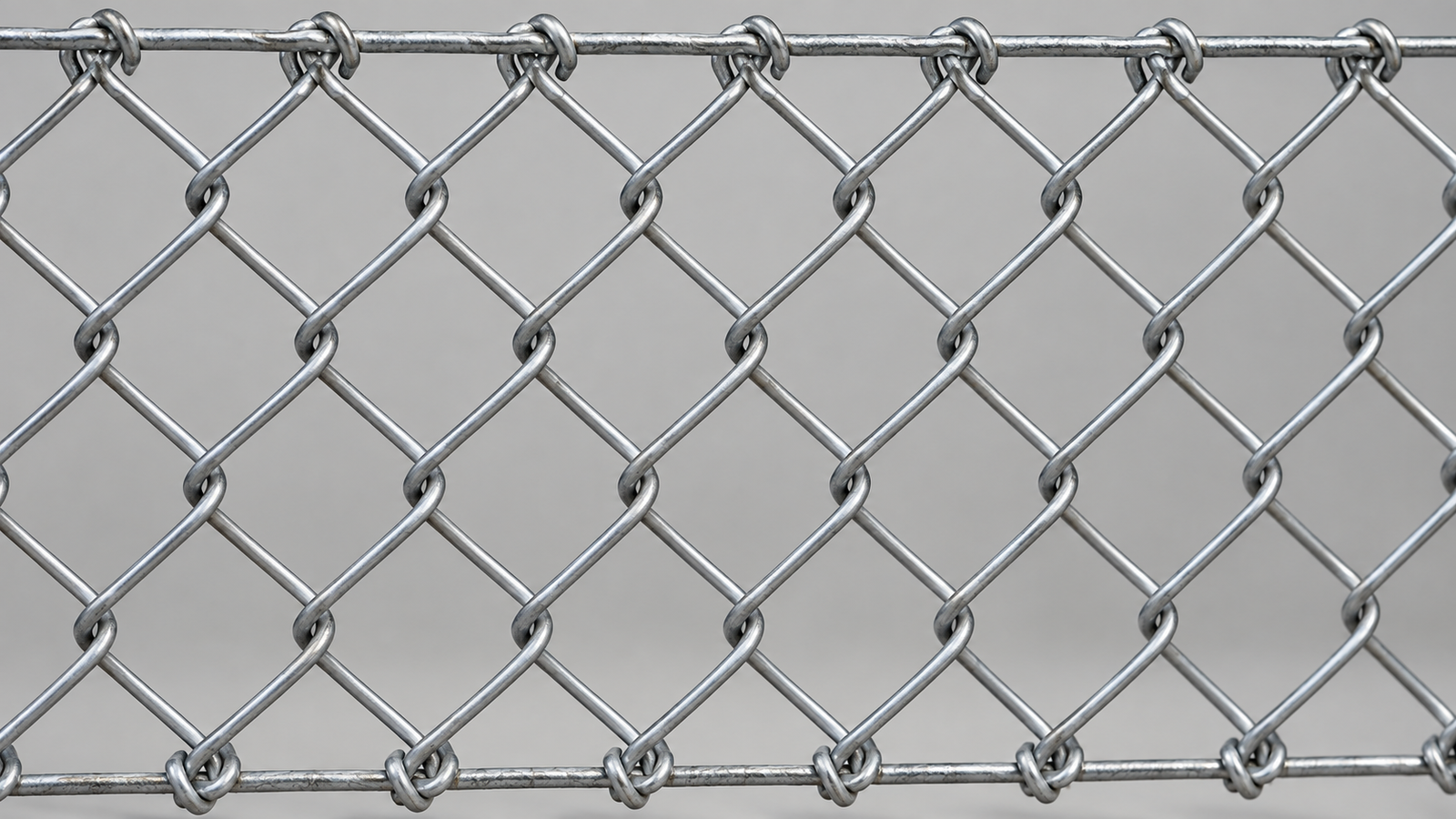

Aufbau, Material und Fertigung

Chain Link Mine Support Mesh wird üblicherweise in Ausführungen wie Mine chain-link mesh, Galvanized chain-link mesh, High-strength chain-link mesh angeboten. Materialien umfassen Galvanized steel wire, High-tensile steel wire, Low-carbon steel wire. Die endgültige Kombination ist nach Einsatz, Lasten und Fertigmaßen zu bestätigen. Mesh opening: 25–100 mm; Wire diameter: 1.5–5.0 mm.

Mine-support chain-link mesh should confirm wire diameter, opening, strength grade, roll length and edge treatment together with the anchoring and overlap arrangement for the roadway support plan.

AufbauMine chain-link mesh / Galvanized chain-link meshFertigungGeschweißte Paneele mit SpiralverbindernOberflächeGalvanized steel wire / High-tensile steel wire / Low-carbon steel wireQualitätsprüfungMaße, Schweißstellen und Verpackung geprüft
